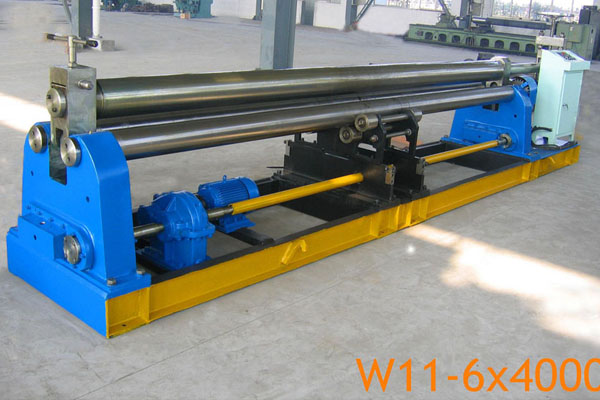

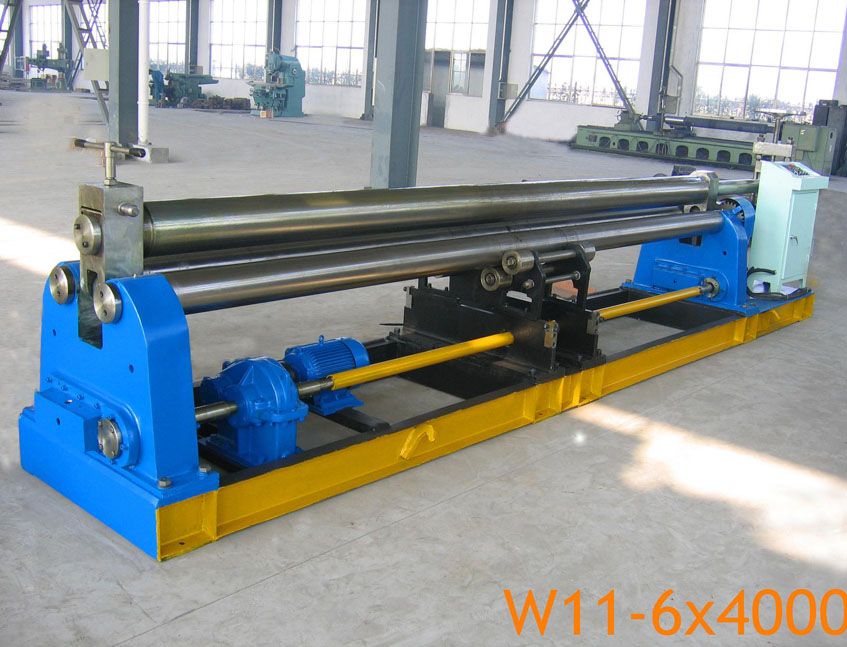

T3-6T4000W Plate Bending Machine
T3-6T4000W Plate Bending Machine is a full mechanical three plate bending machine. All of the three rollers fixed, placed like a pyramid.
-- Bending thickness from 1mm-25mm, bending length range 1000mm-3000mm.
-- Profile bending mould can be mounted on the end of the roller to bending the angle bar, I beam, solid bar and pipe.
Parameter
|
| T3-6T4000W Plate Bending Machine |
Yielding limited | MPa | 245 |
Max.bending thickness: | mm | 6 |
Max.bending width | mm | 4000 |
Full-loading Min. bending diameter | mm | 600 |
Upper roller diameter | mm | 260 |
Upper roller material |
| 45# forged steel |
Lower roller diameter: | mm | 200 |
Lower roller material |
| 45# forged steel |
Central distance of the lower rollers | mm | 320 |
Bending speed | m/min | about 4 |
Main motor power | KW | 11 |
